The line blurs between peer-reviewed-science and peer-reviewed-public-relations.
The Big-Scare-Campaign needed an answer to the missing hot-spot question. They needed to find the “hot spot”, or failing that, at the very least provide a “hot spot” type graph that would answer the critics; something that passed for a scientific answer that might fool journalists and bloggers. The failure to find the projected hot spot is so damning, and so obviously not what the models predicted, that there is a veritable industry of people working hard to find a reason why the weather balloon results must be wrong. Steven Sherwood creatively even resorted to throwing out the thermometer readings entirely and using wind shear instead. (If only we’d known! All those years and we didn’t need the thermometers?)
In Robust Tropospheric Warming Revealed by Iteratively Homogenized Radiosonde Data (March 2008) Sherwood et al combine both windshear and temperature data to reconsider the radiosondes yet again. The Scientific Guide to The Skeptics Handbook and others use the graph from the top left corner of this paper (Fig 1 here) to suggest that the hot spot is not missing, or that the “fingerprint” was found. Sure enough, it’s a cute graph. Looks “hot”, right?

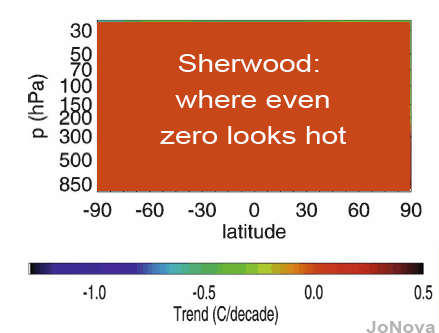

Peek closely at the scale of the graph. Note the color of zero – that’s right — if there was no global warming in the entire atmosphere, no change, nothing at all happening, the Sherwood interpretation would look like one giant hot-spot:
With poor resolution and a carefully chosen color scale the top graphs give the glancing impression that models aren’t doing too badly. But the color scale above is not just counter intuitive, it actively prevents anyone from comparing the trend in the upper troposphere with the surface. Any warming trend at all is “red”. Trend information is lost within the graph. (I considered trying to recolor it but all reds are red if you know what I mean. 101 shades of red might work well for snakes with infrared acuity…).
None of the authors, editors, or peer reviewers apparently had any problem with a graph with the meaningless scale. It’s just another endorsement of what you get with anonymous unpaid reviewers.
Here (below) are the earlier graphs that this paper is obviously a response too. Note back in the original CCSP documents that the colour scale helped the reader understand what was happening (even if pink is a questionable choice for the ultra cold). The models predicted a fingerprint of well mixed greenhouse gases that would look like graph A below. The stratospheric cooling (the blue bit at the top) is due to both carbon dioxide as well as declining ozone levels. The warming bit in the bottom half is possibly due to carbon dioxide (in part). But the red hot spot is due to feedbacks from humidity and clouds, with some latent heat release — at least in theory anyway.
In reality the radiosondes don’t find anything like that pattern, which tells us the feedback effects predicted by the models are not describing the real world very well.
Can the claim be made that after Sherwood’s adjustments the radiosondes are broadly consistent with models? It all depends on how broad your consistency is. When a zero trend is almost “consistent” with a 0.25 warming trend (namely consistently red), what’s the difference?
In the same vein, I guess the number 1 is broadly consistent with “2″.
Make no mistake, Sherwood was looking for the missing hot spot. In the introduction he makes it clear that’s what this is all about:
The question of whether tropospheric temperatures are participating as expected in climate change has been controversial, with some observing systems reporting changes that are inconsistent with the models (CCSP 2006; National Research Council 2000)… that discrepancies between expected and measured tropospheric warming rates have not been fully explained in the tropics (CCSP 2006), …
The title may sound impressively “robust” but the dodgy color choice and the fine print tell a different story. In the abstract no one is exactly gushing:
“The meridional variations of zonally aggregated temperature trend since 1979 moved significantly closer
to those of the Microwave Sounding Unit (MSU) after data adjustment. Adjusted data from 5°S to 20°N
continue to show relatively weak warming, but the error is quite large, and the trends are inconsistent with
those at other latitudes.”

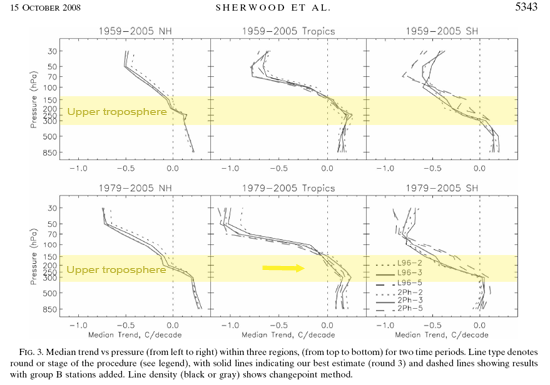

Note this set of graphs in his Fig 3 (especially the centre ones of the tropics, most particularly 1979-2005):
In the conclusion, Sherwood comments on the trend that is within uncertainty bounds (and it happens to be in the lower half of the troposphere), but I can’t see any equivalent numerical focus on the important zone from 150 – 350 hPa (which I highlighted above), and was the apparent reason for doing more adjustments.
Our 1979–2005 trends for 850–300 hPa in the tropics are 0.15°
0.07°C decade1. This is within uncertainty
of the roughly 0.17°–0.22° expected on the basis of surface trends of 0.12°–0.14°C decade1 (CCSP 2006;
Santer et al. 2005), and the agreement would improve if one were to remove the deep tropical stations whose
behavior is inconsistent with the rest of the network.
There is no justification in the paper for saying that the adjusted sonde data now finally agrees “broadly” with the models. It’s 10 years since the data from the 1979-1999 warming period came in, and team after team has reanalyzed the data every way they can think of, and almost all the reanalyzing seems to be in a non-random model-friendly direction.
The IPCC is 90% sure a disaster is on the way, but ask for evidence that the models are right about the feedbacks and the aggressive certainty evaporates into vague lines about how things are not inconsistent, if you (insert caveat), and (insert adjustment), and (insert particular dataset, in a particular era). Sherwood might have improved the trends, but if he’d have found the holy-grail he’d have said so.
Hat tip to the anonymous person or collective who wrote The “Guide” and to John Cook (maybe the same person) who drew my attention to the Sherwood graph. There’s plenty more to come
STEVEN C. SHERWOOD, CATHRYN L. MEYER, AND ROBERT J. ALLEN, HOLLY A. TITCHNER, Robust Tropospheric Warming Revealed by Iteratively Homogenized Radiosonde Data, JOURNAL OF CLIMATE, vol 21 p5336 [PDF]
